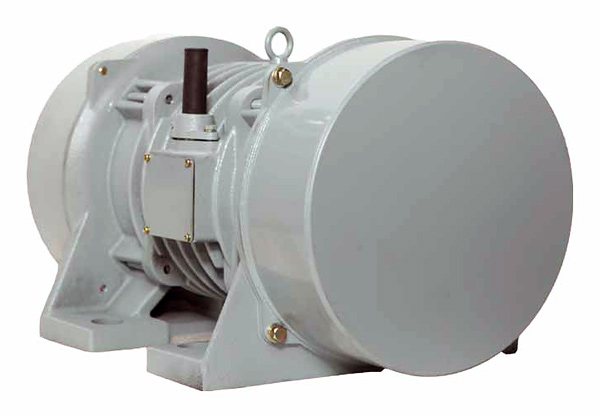

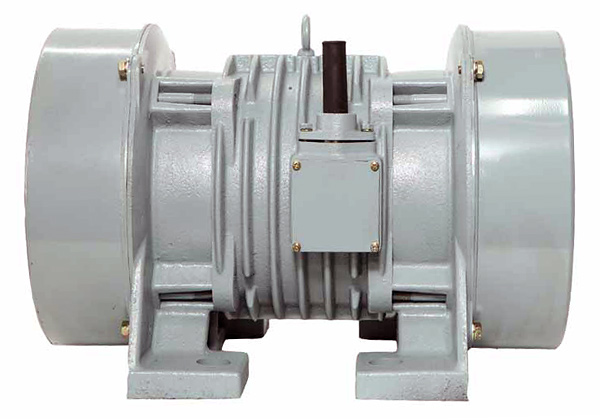

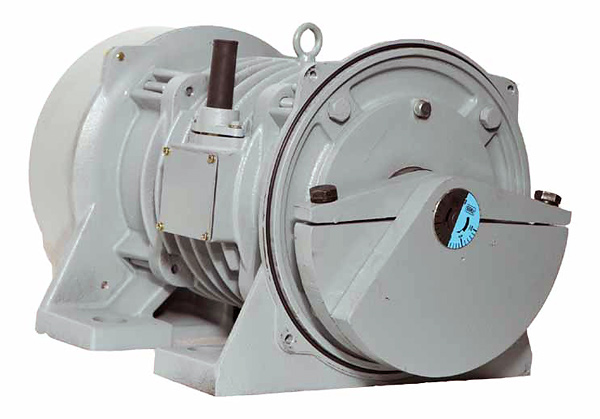

D-875
Product Use
- Large scale packing conveyor machines.
- Vibrating sifters and vertical coolers for wet chemical ingredients.
- Heated glass waste water cooling conveyors.
- Food and chemical raw materials dehydrating and cooling conveyors.
- Food cleaning, drying and sifting machines.
- Earthquake simulation machines (power adjustable).
- Long-distance material conveyors (six meters or less).
- Low-speed, long-distance conveyors (utilized for electroplating, casting, etc.)
- Vibration testing machines for large items
Size Chart
.jpg)
Vibrator Speed
Power supply frequency of 50 Hz: 12.5 Hz (750 r/min)
Power supply frequency of 60 Hz: 15 Hz (900 r/min)
| Models | HP | Vibrating force | Outer Dimensions (mm) | Foot stand screw | Weight (Kg) | |||||||||||
| (Kg) | D | E | F | G | H | I | J | K | L | M | N | Φd | ||||
| D-875 | 1 | 1300 | 267 | 260 | 140 | 20 | 145 | 285 | 80 | 90 | 470 | 320 | 267 | 28 | M25 |
|
